Wire insert extractor tool
Wire insert extractor tool
No reviews
Regular price
£25.20 GBP
Regular price
Sale price
£25.20 GBP
Unit price
/
per

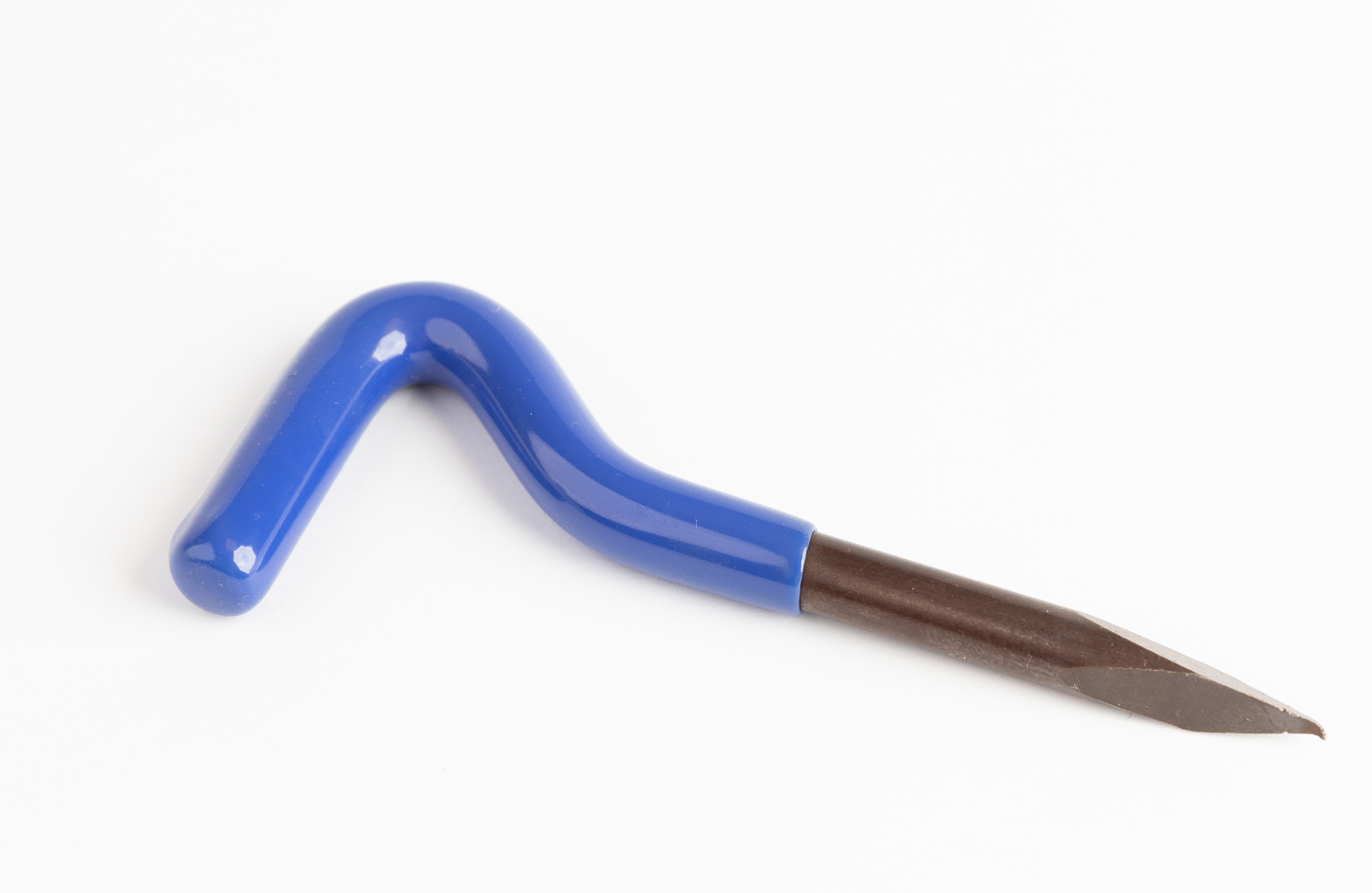

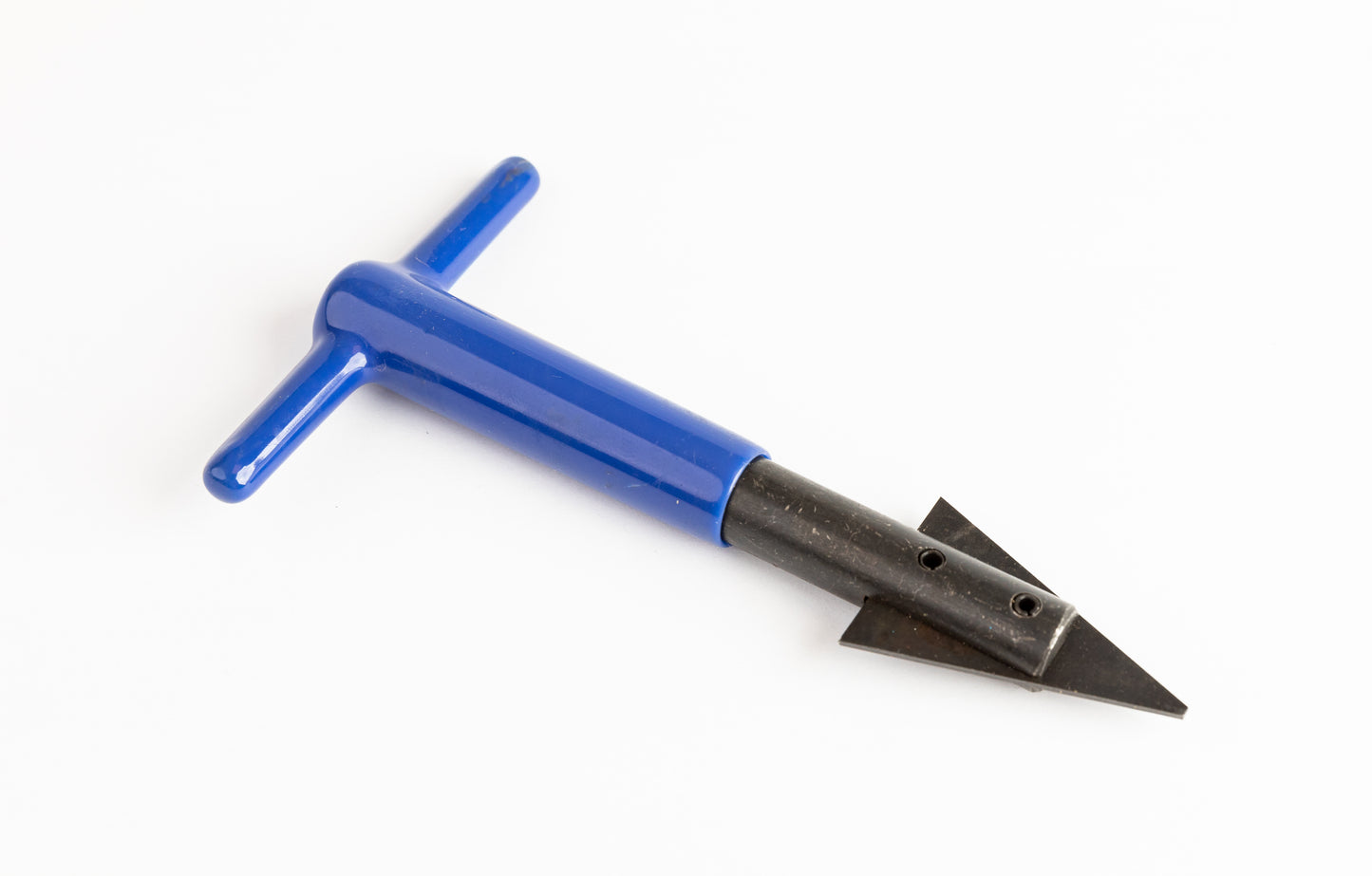

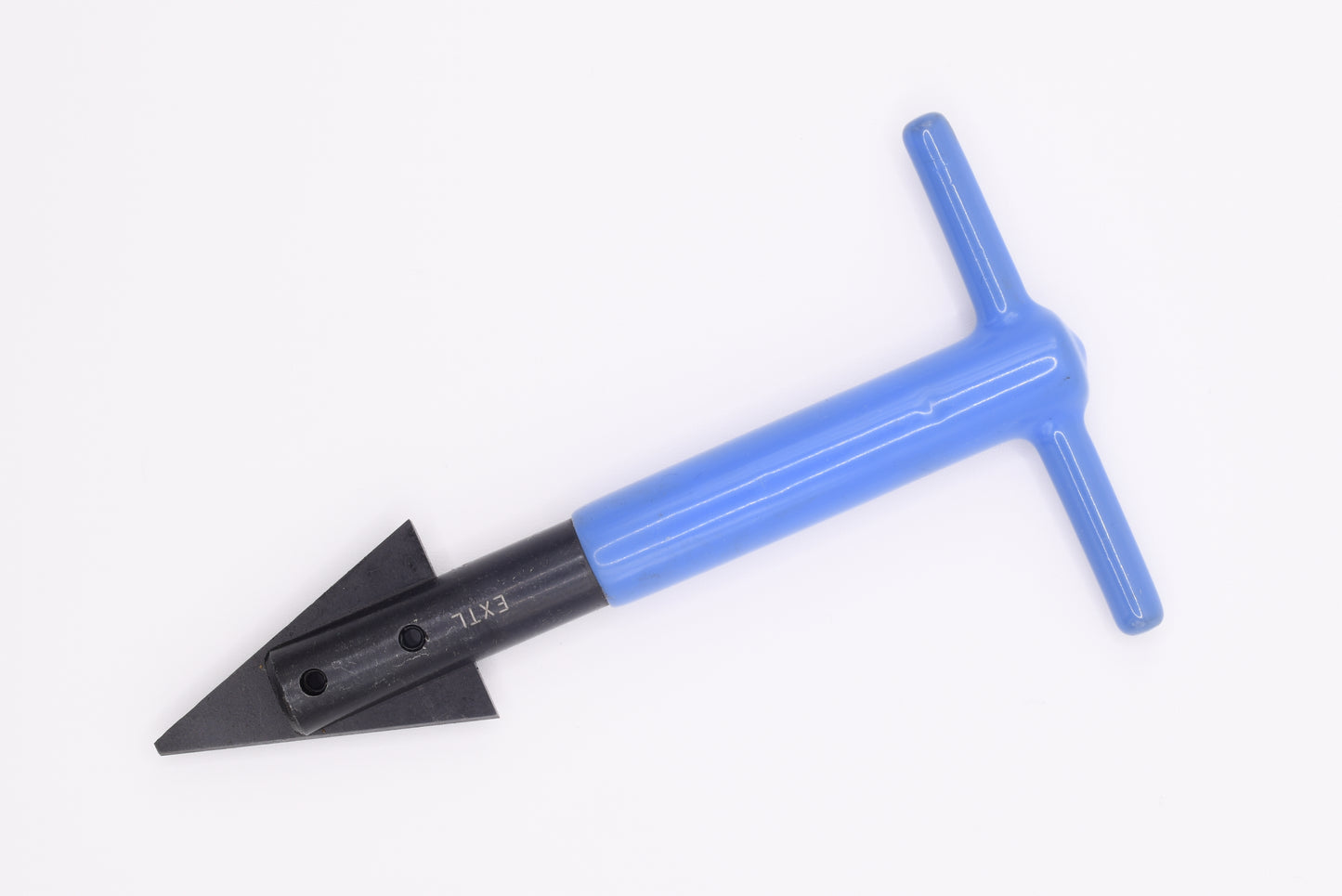

Simple and easy-to-use, our extractor tools have triangular or trapezoidal-shaped blades with sharpened edges that enable efficient removal of incorrectly fitted inserts.
Method of use:
- Insert the sharpened blade into the top threads of the wire insert approximately 45° from the end of the coil. (In some instances, it may be necessary to use a hammer to ensure the blade bites into the top coil of the insert, or to use a Swiss file to cut a small notch into the top coil of the insert for the tool to bite into.)
- Maintaining a downward pressure on the tool, turn anti-clockwise to unwind the insert from the tapped hole.
NOTE: Care must be taken when using the tool to avoid damaging the component material or the tapped hole.
Available in three sizes, please refer to the cross-reference chart below to determine which size you need:
Thread form | Small extractor | Medium extractor | Large extractor |
Metric | M2 - M6 | M8 - M14 | M16 - M30 |
UNC | 2-56 - 1/4 | 5/16 - 9/16 | 5/8 - 1"1/8 |
UNF | 2-64 - 1/4 | 5/16 - 9/16 | 5/8 - 1"1/8 |
BSF | 3/16 - 1/4 | 5/16 - 9/16 | 5/8 - 1"1/8 |
BSW | 1/8 - 1/4 | 5/16 - 9/16 | 5/8 - 1"1/8 |
